Bioreactors , Vessels and Accessories

  • Jacketed and Unjacketed Glass Reactors
  • Available volumes of culture vessels: 1 - 36 l, depending on type of reactor
  • Heating blankets and cooling coil assemblies for temperature control during cultivation
  • Heavy duty overhead drive motors, motor adapters, and magnetic stirrers available for long term use
  • Various stirrer types and baffle designs (stainless steel or PTFE) to choose from
  • Stirrer speed range: 5 - 150 rpm and 30 - 500 rpm, depending on type of stirrer
  • Various accessories for venting of reaction vessels and for aseptic sampling on offer
  • Connectors and accessories for process data recording: pH-, temperature- and dissolved oxygen probes
  • Water Jacketed Bioreactors Vessel 8 L
  • Vertical Side-arm Bioreactor Vesseöls, 8, 15 and 36 l
  • Low Profile Vertical Side-arm Bioreactor Vessels, 3 and 6 l
  • Overhead Drives, different types
further information on pages 6, 8, 11 of Bellco catalogue (PDF)

CO2 Incubator

  • 40 cubic feet of volume (Large Capacity Unit: 80 cfu)
  • Designed for use with Bellco’s Cell Production Roller Apparatus (CPRA)
  • Internal convenience outlet(s) on top allows simple connection to internally placed appliances such as Roller Apparatus, Roller Drums, Magnetic Stirrers, etc.
  • 1100 watt heater
  • Microprocessor temperature controller and membrane keypad or touchscreen allow simple setting and monitoring of chamber temperature
  • Safety thermostat
  • Microprocessor CO2 controller allows sets and monitors chamber CO2 level
  • Control panel with lights and dials or with touchscreen display for automatic control of temperature
  • Units are ideal for cell culture applications and fermentation.

further information about Incubators & Roller Apparatus (PDF)

Insect Cell Culture System

  • Complete system includes:
    • Bell-ennium™ 5 position magnetic stirrer
    •  4 x 3 litre spinner flask, complete
    •  4 x 2-port assemblies for GL45 side arms
    •  Gas blending stand
    •  Silicon tubing
  • Digital and process controlled systems available
for further information see p.11 of the Bellco catalogue (PDF)

Homogenizers

  • Dounce Tissue Homogenizer with Glass Tube and Pestle
  • Potter-Elvehjem Tissue Homogenizer, Ground Glass Tube and Pestle
  • Potter-Elvehjem Tissue Homogenizer, Unground Glass Tube and PTFE Pestle
  • Conical Homogenizer, Ground Glass Tube and Pestle
  • Tenbroeck Tissue Homogenizer, Ground Glass Tube and Pestle
  • Homogenizer Overhead Drive
  • Cellector™ Tissue Sieve Homogenizer and Mesh Screens
  • BioVortexer Motor, Pestles and Tubes

for further information see pages 25-26 of Bellco catalogue (PDF)

Hybridization Ovens Autoblot®

  • Temperature range: ambient + 5 °C to 99 °C
  • High temperature uniformity and
    accurate temperature control
  • Models with different rotation speeds:
    fixed 7.5 rpm or variable 0 - 80 rpm
  • Units with different sizes for short and long hybridization bottles
    • Micro: Rotisserie for 4 long (8 short) bottles
    • Mini: Rotisserie for 6 long (12 short) bottles
    • Mega: Rotisserie for 12 long (24 short) bottles

for further information see p. 35 of the Bellco catalogue (PDF)

Incubators

Benchtop Incubator for Roller Apparatus
  • With 4 or 10 positions (max. 2 decks)
  • Temperature range: 5 °C above ambient to 50 °C
  • Temperature uniformity: ± 1.0 °C at 37 °C
  • Exterior dimensions (w x d x h): approx. 90 x 54 x 77 cm
  • Chamber dimensions (w x d x h): approx. 75 x 35 x 50 cm
         (interior) (139 l)
  • Temperature alarm with remote jack
  • One interior electrical outlet

 Refrigerated Roll-In Incubators
  • Large and Small versions availible
  • Ideal for the cultivation of temperature sensitive cells in a controlled environment.
  • Temperature range: 20 - 50 °C
  • Temperature uniformity: ± 0.5 °C cooling; at ± 1.0°C heating
  • Microprocessor PID temperature controller
  • Forced air circulation for even temperature distribution
  • Interior electrical power outlets (2 - 4) in chamber
  • Control panel with power switch, convenience outlet, safety thermostat
  • Refrigeration switch and temperature controller
further information about Incubators & Roller Apparatus (PDF)

Insect Cell Culture System

  • Complete system includes:
    • Bell-ennium™ 5 position magnetic stirrer
    •  4 x 3 litre spinner flask, complete
    •  4 x 2-port assemblies for GL45 side arms
    •  Gas blending stand
    •  Silicon tubing
  • Digital and process controlled systems available
for further information see p.11 of the Bellco catalogue (PDF)
 Magnetic Stirrers

Bell-ennium™

  • Speed Range: 30 - 500 rpm
  • 1, 2, 5 or 9 positions
  • Digital display
  • Compact design
  • Stainless steel cover showing bottle positions
  • Optionally: Process controlled units
    (with RS485 data port and optional alarm)
further information see pp.12-13 of the Bellco catalogue (PDF)

Bell-Stir

  • 1 or 4 positions
  • Dimensions: 26 x 26 x 13 cm (w x d x h)
  • Speed Range: 30 – 1000 Rpm +/- 5%
  • Environmental Conditions (Operating): Indoor Use, Pollution Degree 2, 4° To 50° C, Relative Humidity 0-90%, Non-Condensing
  • Environmental Conditions (Non-Operating): -10° To 60° C, Relative Humidity 95% Maximum
     further information see pp.12-13 of the Bellco catalogue (PDF)

Mini Orbital Shaker

  • Designed for use with different platforms:
    • Platform with 3 dividers for flasks,
    • Platform with mat and stainless steel tray
    • Platform for max. 24 microwell plates
  • Orbit 1.59 mm (1/16")
  • Speed range: 40 - 1550 rpm
  • Timer (3 - 120 minutes) or continuous shaking action
  • Working environment: 4 °C - 50 °C,
    relative humidity max. 95 %
  • Maximum load: 9 kg
for further information see p. 34 of the Bellco catalogue (PDF)

Overhead Drives

  • Motors for stirring from top
  • Speed range 5 - 150 rpm
  • Standard (2.15 Nm) and Hi-torque (3.62 Nm) models
  • Optionally: Process controlled units
    (With RS485 data port and motion alarm)
  • Reverse direction switch
  • Standard and Hi-torque models
  • Overhead Drive Adapters
 see pages 8, 26 of the Bellco catalogue (PDF)

Pipette Plugger

  • For plugging of glass pipettes with cotton
  • Three plugging speeds: 40, 50 or 60 pipettes per minute
  • Operates in continuous or actuated mode
  • Supplied with bag cotton rooms for approx. 35,000 pipettes
further information about Pipette Plugger (PDF)

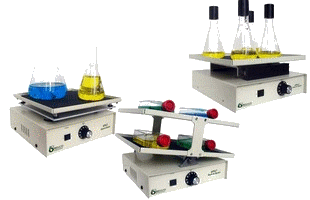

Rockers and Shakers "Back-to-Basics"
cost effective and easy-to-handle equipment

  • For many basic applications in the laboratory
  • Different models and platforms available
further information see pages 8, 26 of the Bellco catalogue (PDF)

Roller Drums

  • Digital display
  • Speed range: 0.2 to 50 rpm
  • Drum tilt: 0° C  to 7 ° C
  • Low profile model available
further information see p. 32 of the Bellco catalogue (PDF)

  • Bildtitel

    Untertitel hier einfügen
    Button

  • Bildtitel

    Untertitel hier einfügen
    Button

  • Bildtitel

    Untertitel hier einfügen
    Button

Roller Apparatus

  • Models for 2 to 88 roller bottles
  • Modular units or units with fixed frame
  • Bottom-Drive or Top-Drive models
  • Rotation speed 0.1 to 10.0 rpm (depending on model)
  • Analog, Digital or Touchscreen display
  • Accepts glass or plastic roller bottles with 11 to 12 cm outer diameter and up to 57 cm total length
     (28.5 cm for Benchtop systems)
Options:
  • All position drive
  • Process-controlled units: RS485, RS232 or 4-20 mA port
  • Motion Alarm: Audible and visual alarm system with remote jack for interfacing with alarm systems or computers
  • Battery-backup: for up to 18 hours operation
    after power failure
  • Stand-by drive and alarm system in case of mechanical or motor fault of the primary motor
further information about Incubators & Roller Apparatus (PDF)
For more information and suitable large capacity Roll-In Incubators from ShelLab please click here

Shaking Water Baths (Hot Shakers)

  • Ideal for hybridization assays, electrophoresis and
    hot staining protocolls
  • Single or dual pan models
  • Temperature range: ambient + 5 °C to 99 °C
  • Temperature sensitivity: ± 0.1%
  • Speed range: 0 - 75 oscillations/minute
  • orbital radius 2,5 cm
for further information see p. 32 of the Bellco catalogue (PDF)

Tube Roller

  • Accommodates various bottle dimensions by removing idler rollers
  • For tubes and bottles with an OD from 1,6 - 12 cm
  • 6 Drive rollers and 5 idler rollers
  • Speed range: 0,1 - 30 rpm (depending on bottle/tube OD)
  • Dimensions (w xd x h): 38 x 48 x 8 cm
  • Maximum Bottle Length: 25,4 cm
  • Maximum Load: 4,5 kg
for further information see p. 13 of the Bellco catalogue (PDF)
For further information on our Bellco Glass products click here (PDF)


05-2020
