Laboratory Equipment from N-Biotek

"MiniCell"™- small portable incubator
-alsoavailible with CO2  control -

  • Compact incubator with carrying handle for easy transport
  • Capacity: 15.2 l
  • Internal dimensions (w x d x h): 224 x 200 x 340 mm
  • External dimensions (w x d x h): 292 x 333 x 433 mm
  • Weight: 6.8 kg
  • Temperature range: 15 °C to apprx. 45 °C at ambient 25 °C
  • Cooling and heating by Peltier system for low-noise operation
  • CO2 range: 0 to 20 % (infrared sensor)
  • User-friendly, digital control with LED display
  • Uniform temperature
  • Supplied with water tray for natural humidity up to 80 %
  • Supplied with 2 stainless steel shelves
    (max. 3 shelves can be fitted)
  • Also available as CO2 incubator: CO2 range: 0 to 20 % (infrared sensor)

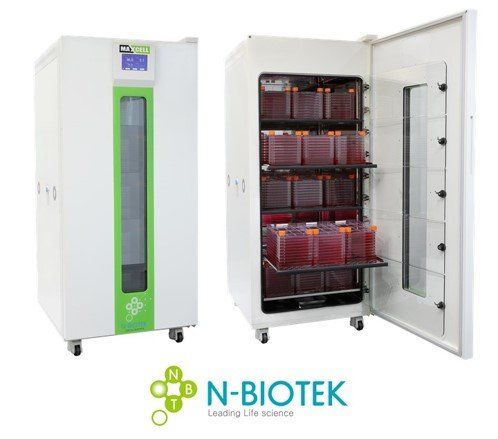

CO2 Incubators with or without            Touch Screen

  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared CO2 sensor)
  • 5 different incubators with various capacities (15, 42, 180, 280 and 880 liters).
  • LED display
  • Stainless steel interior and shelves (perforated)
  • Double door: compact outer door and clear tempered safety glass inner door
  • Heated door prevents condensation on glass door
  • Supplied with water tray for natural humidity
  • Optional features:
    • UV or hot air sterilization
    • Split inner glass door
    • Humidity control or display only - O2 control
    • HEPA filter
    • Kit to enable stacking ofincubators
    • Copper interior instead of stainless steel
    • 25 mm Access port on left side
    • Further features available on request

  • Temperature range: 7 °C above ambient to 60 °C                (± 0.5 °C at 37 °C)
  • CO2 range: 1 to 20 % (Dual Beam IR CO₂ Sensor);          CO2 accuracy: ± 0.1 % at 5 %
  • Incubator with a microprocess PID control
  • Air jacket, 6 side direct heating
  • Stainless Steel 304 interior and perforated shelves
  • Double door: powder coated outer door (heated) and clear tempered glass inner door (optional heated)
  • Supplied with water tray for natural humidity (80 – 90 %) or optional ultra sonic humidifier
  • Quantity of shelves depends on the model (0 – 5)
  • 7 inch full colour and user-friendly LCD touchscreen
  • Internal memory for recording up to 6 months with a USB 3.0 Port
  • Real-time monitoring system with a screen lock
  • Alarm for temperature, CO₂, door open, sensor failure
  • Independent analogue thermostat for temperature safety
  • 4 x Fans at back bottom-most / Vertical Laminar Airflow
  • 2x Access Ports (each at left and right side)
  • Mobile due to the four adjustable castors
  • Further optional features and accessories on request

Large CO2 Incubators "Anicell"
with integrated orbital shakers

  • Two models with capacities of 650 l and 850 l
  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared sensor)
  • HEPA filter
  • Outer door with magnetic lock
  • Built-in UV lamp (4 W) with on/off switch
  • Interior divided into 3 compartments, separate inner door (made of tempered safety glass) per compartment and
    1 orbital shaker per compartment (3 shakers in total)
  • Each shaker controlled separately by control panel on outside of the incubator
  • Because distances between shelves can be varied and shakers can be removed 5 l to 10 l flasks can also be used
  • Specifications of integrated shakers:
    • Shaking speed: 30 to 200 rpm (± 1 rpm) or
    • 30 to 250 rpm (± 1 rpm)
    • Orbital diameter: 25 mm
    • Dimensions of shaker (w x d x h):
      465 x 520 x 125 mm
    • Dimensions of platform: 520 x 520 mm
    • Automatic stop/restart function if inner door is opened/closed
    • Choice of platforms with clamps for flasks, microplates, or tube racks available

Benchtop CO2 Incubators
with integrated orbital shakers

NB-206CL with 2 integrated orbital shakers
  • Capacity: 179 l
  • Two integrated shakers
  • Temperature range: 5 °C above ambient to 50 °C
  • CO2 range: 0 to 20 % (infrared CO2 sensor)
  • Each shaker controlled separately by control panel on outside of the incubator
  • Supplied with water tray for natural humidity
  • LED display
  • Outer door with magnetic lock
NB-203QS
  • Capacity: 179 l
  • One integrated shaker
  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared CO2 sensor)
  • Shaker with external control panel
  • LED display
Specifications of integrated shakers in NB-206CL
and NB-203QS:
  • Shaking speed: 30 to 300 rpm
  • Orbital diameter: 22 mm
  • Platform size: 300 x 330 mm
  • Optional platform to enable switch between orbital and reciprocal motion available
  • Choice of platforms with clamps for flasks, microplates, or tube racks available

  • The specifications of the integrated orbital shakers and the dimensions of the incubators and compartments are listed in our product brochure below.

Incubator with integrated orbital shaker

  • Capacity: 142 l
  • Temperature range: 5 °C above ambient to 60 °C
  • Supplied with:
    • 2 shelves
    • integrated orbital shaker (low vibration):
      30 to 300 rpm
  • Microprocessor controlled incubator and shaker
  • LED display
  • Door with viewing window
  • Specifications of integrated shakers
    • Shaking speed: 30 to 300 rpm
    • Orbital diameter: 22 mm
    • Platform size: 300 x 330 mm
    • Optional platform to enable switch between orbital and reciprocal motion available
  • Choice of platforms with clamps for flasks, microplates, or tube racks available

Shaking Incubators with touch screen

  • 2 versions in different sizes
  • User-friendly and intuitive LCD Touch Screen
  • Clear cover opening upwards
  • Temperature range: 5 °C above ambient to 60 °C
  • Shaking speed: 30 to 300 rpm
  • Orbital movement (Ø 22 mm)
  • Shaking stops when door is opened
  • Selection of platforms with clamps for flasks, microplates, or tube racks

Shaking Incubators with cooling feature

General features:
  • Shaking speed: 30 to 300 rpm
  • Orbit diameter: 22 mm
  • Shaking stops when door is opened
  • Uniform temperature inside, built-in CFC-free compressor
  • Selection of platforms with clamps for flasks, microplates, or tube racks
Benchtop incubator (NB-205LF)
  • Large benchtop unit with clear cover that opens upwards
  • Temperature range: 12 °C below ambient (based on 25°C RT) to 60 °C
  • Defrosting system for long lasting cooling power
  • User-friendly and intuitive LCD Touch Screen
Floor standing incubator (NB-205V)
  • Viewing window in the door (door opens upwards)
  • Temperature range: 4 °C to 60 °C
  • Microprocessor controlled, LED display, stainless steel chamber
  • Uniform temperature inside, built-in compressor

Orbital shakers with touch screen

and optional separate remote controller
  • 2 versions: mini shaker and standard shaker
  • User-friendly LCD Touch Screen
  • Units with separate remote controller can be used in incubators with a humidity up of to 85 % and an ambient temperature of 4 °C to 60 °C
  • Shaking speed: 30 to 300 rpm
  • Orbital diameter: 22 mm
  • Timer: 1 minute to 48 hours, or continuous operation
  • LED display shows shaking speed and shaking time
  • Choice of platforms with clamps for flasks, microplates, or tube racks
  • Optional platform to enable switch between orbital and reciprocal motion available

Water baths

- also with shaking feature -
Water bath for general applications:
  • Water capacity: 10 l
  • Temperature range: 5 °C above ambient to 99 °C
  • Engraved water level scale
  • Heater located underneath the water chamber
  • LED display for temperature, time and power failure

Water baths with shaking feature:
  • Shaking speed: 30 to 200 rpm
  • Orbital (NB-303) or reciprocal (NB-304) movement
  • Water capacity: 10 l
  • Temperature range: 5 °C above ambient to 80 °C
  • Heater located underneath the water chamber
  • Supplied with spring wire rack for safe positioning of vessels

Vacuum evaporator

  • Infrared glass lid spreads heat and infrared radiation to reduce time required for evaporation of samples using vacuum e.g. for DNA or RNA samples
  • Temperature range: 35 °C to 65 °C (0.1 °C increments)
  • 3 selectable rotation speeds:
    1,700 rpm; 2,500 rpm, or 5,000 rpm
  • Timer: up to 99 hours and 59 minutes
  • LED display for temperature and timer
  • Built-in oil-free vacuum pump (diaphragm pump)
  • Separately available rotors for different tube sizes
    (0.5 to 30 ml)

Multi functional workstations

for cell isolation or cell handling
  • Possibilities of contamination are reduced since multiple operations can be performed with one equipment
  • 2 models: NB-803MS and NB-803MSF
  • The following features are included:
    • Laminar air flow cabinet with HEPA filter and
       UV lamp
    • Centrifuge (NB-803MS) or centrifuge with cooling (NB-803MSF)
    • Shaking incubator: 30 to 300 rpm and temperature range ambient 5 °C above ambient to 60 °C
  • Supplied with foot pedals to start and stop centrifuge and shaking incubator
  • Optional accessories on request
